Ultra-Match III Induction Power Supply

Heating Induction Services Inc., Ultra-Match III Power Supply

Ultra-Match III Power Supply Design

The Ultra-Match III (UM3) is a current source, IGBT based, low, medium or high frequency induction heating machine. This unit comes in power ranges from 10 kW to 2 MW and frequencies of 100 Hz to 50 kHz nominal. Conservatively rated components allow for 100% duty cycle rating along with the HIS 18% MORE POWER standard feature as part of our UM3 and AM1 Brands.

Standard Features and Specifications Include:

  • 380-575 VAC (Advise During Quoting), 3-Phase, 50-60Hz Power Input
  • Input Disconnect Switch (Circuit Breakers with Under Voltage or Shunt Trip, Available upon request)
  • 3-Phase Current Controlled Input Rectifier
  • Frequency Tracking Between 60-130% with NO Capacitor Tap Changes
  • Dip Switch (or PLC) Frequency Selection
  • Dual Main Control Boards (Converter/Inverter) With Easy Setup Guides
  • Digital Operators Panel with Voltage, Kilowatt, Frequency Meters and Full Faults Indicators
  • Single Button, Simple Operation with Tight Tolerance Regulation (1/2 of 1%)
  • Thermal Safety Protection on Critical Power Components
  • Four (4) Inverter IGBT’s Only for Power Ranges of 50 kW to 1500 kW

Optional Features:

  • Resonant Frequency Test Circuit for Easy Load Setup
  • Full PLC Interface, (0-10V, Discrete I/O and Ethernet Connectivity Available)
  • Push-Lok Hose Fittings (Eliminates All Hose Clamps)
  • Assembly Orientation Options and Custom Paint Colors

Common Applications for the Ultra-Match III Induction Systems:

*Forging *Melting *Heat Treating *Oil Country Tubular Products *Annealing *Tempering *Brazing and Bonding *Crystal Growing *MOCVD Reactors *Coating Applications *Shrink Fitting

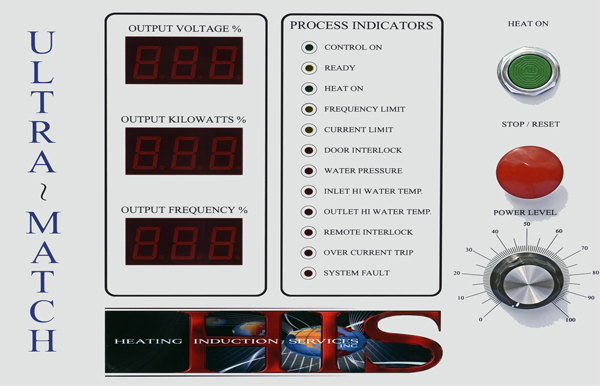

Operators Digital Interface Panel
