Mini-Match II Induction Power Supply

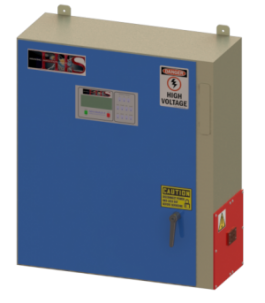

Heating Induction Services Mini-Match II Power Supply

Mini-Match II Power Supply Design

The Mini-Match II (MM2) is an IGBT based, high frequency, portable induction heating machine. This unit comes in power ranges from 1 kW to 10 kW and frequencies of 20 kHz to 80 kHz. The MM2 is also available in a Bench Top or Wall Mount Assembly. Bench Top version comes with Remote Work Station and 5ft of Interconnection Cable. Panel Mount comes with Internal Work Station.

Standard Features and Specifications Include:

  • 220-240 VAC, 3-Phase, 50-60 Hz Power Input.
  • 3-Phase Input Power Circuit Breaker
  • 3-Phase Input Line Filter for Noise Reduction
  • Conservatively Rated Power Components for 100% Continuous Duty Operation
  • Water Cooled with Quick Disconnect Plumbing Fittings
  • Pressure Differential Trip Switch, High Water Temperature Switch & Output Thermal Sensors
  • LCD Display Screen with Complete Diagnostics and Operating Parameters (See Photo Below)
  • Custom PLC Programming Interface for Easy Program Modification
  • 3 Standard Selectable Modes of Operation
  • (A) On-Off Mode, (B) Multi-Stage Power & Time Mode, (C) External Proximity Sensor Mode
  • Wall Mount Version has Internal Heat Station
  • Bench Top Versions have Remote Heat Stations
  • Remote Start Stop & Power Control Standard
  • Water Cooling Systems Available as Air Exchanger or Formal Chiller Depending on KW & Duty Cycle.

Input KVA and BTU Dissipation, Operating at 100% Duty Cycle:

  • 1-kW (1.25 KVA / 2.0 GPM & 1569 BTU Cooling Load)
  • 2-kW (2.50 KVA / 2.0 GPM & 3138 BTU Cooling Load)
  • 3-kW (3.62 KVA / 2.0 GPM & 4707 BTU Cooling Load)
  • 4-kW (4.75 KVA / 2.0 GPM & 6276 BTU Cooling Load)
  • 5-kW (5.90 KVA / 2.0 GPM & 7847 BTU Cooling Load)
  • 6-kW (7.08 KVA / 3.0 GPM & 9417 BTU Cooling Load)
  • 7-kW (8.25 KVA / 3.0 GPM & 10K BTU Cooling Load)
  • 8-kW (9.50 KVA / 3.0 GPM & 12K BTU Cooling Load)
  • 9-kW (10.6 KVA / 5.0 GPM & 14K BTU Cooling Load)
  • 10kW (11.8 KVA / 5.0 GPM & 16K BTU Cooling Load)

Common Applications for the Mini-Match II Induction Systems:

System Image*Brazing *Bonding *Soldering *Coating Applications *Shrink Fitting *Cap Sealing *Small Forging *Heading *Forming *Hardening *Annealing *Precious Metals *Melting

Operators Digital Interface Panel
